bronze stamps with a koi fish and flower design stamping a brown envelope with a wax red seal
Course - ME203 - Design and Manufacturing
Duration - 2 months, Winter 2017
Materials - brass, bronze, silver, steel, walnut

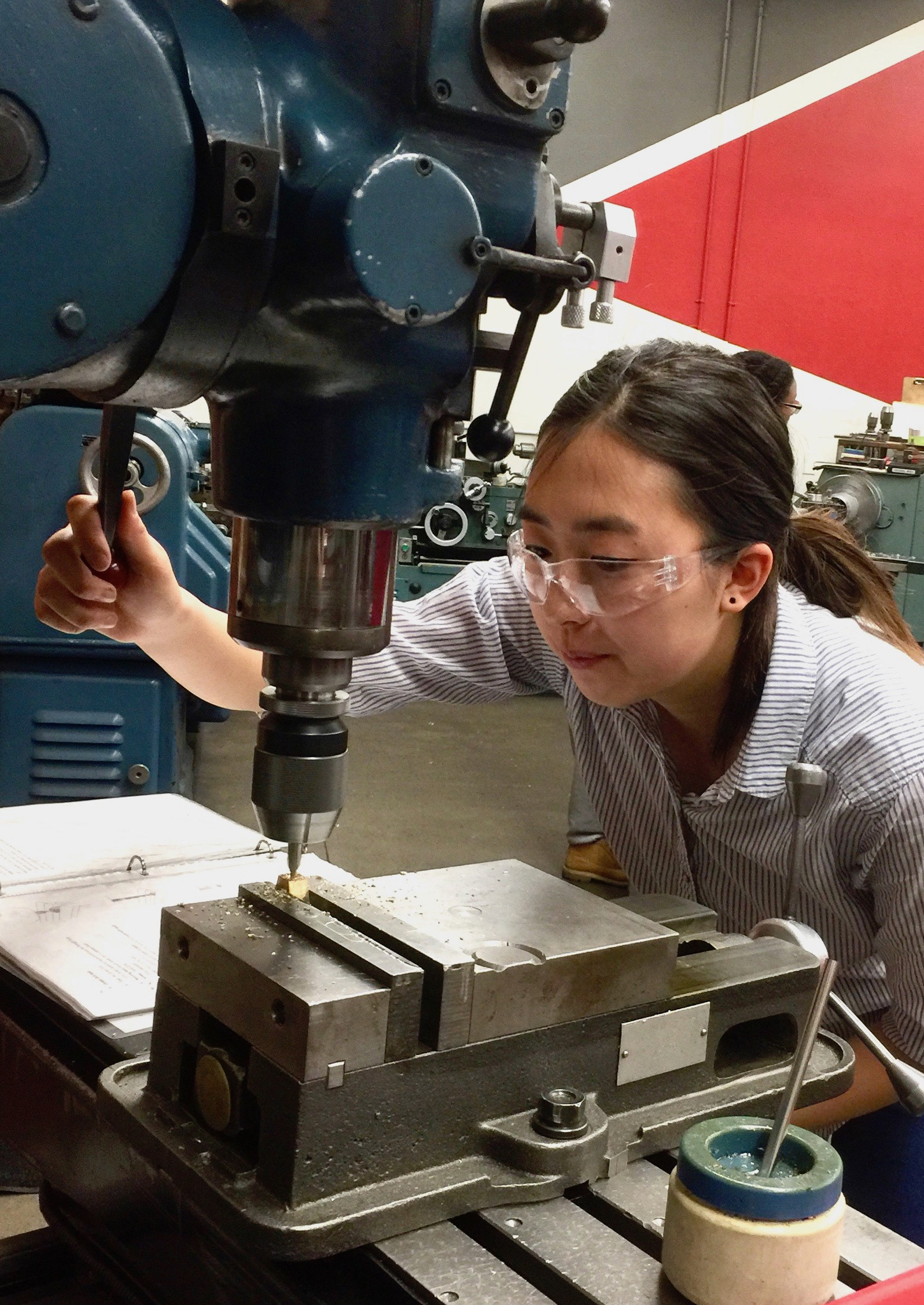

Skills - rastering, casting, milling, turning, brazing, polishing

Through this experience, I was able to practice a wide array of manufacturing techniques and bring a project to life from concept to creation. The final product successfully captured and enhanced the letter-sending experience by taking into account the wax melting process, the personalization of stamp designs, and the satisfaction of sealing an envelope.

I designed my wooden pattern board to handle two stamp molds at a time, so that I could halve the number of times I had to cast. I redesigned these molds several times to ensure that any fine details (i.e. letters, fish scales) would not collapse in the sand mold and ruin the bronze casting. The pouring cup consisted of a brass cup and lug that were brazed together. Both the interchangeable stamp heads and the pouring cup could screw into wooden handles with a threaded insert.

If I were to redo this project, I would redesign the thickness of the pouring cup to increase heat transfer to reduce the wax melting time.
Design Process
Sketches
Sketches

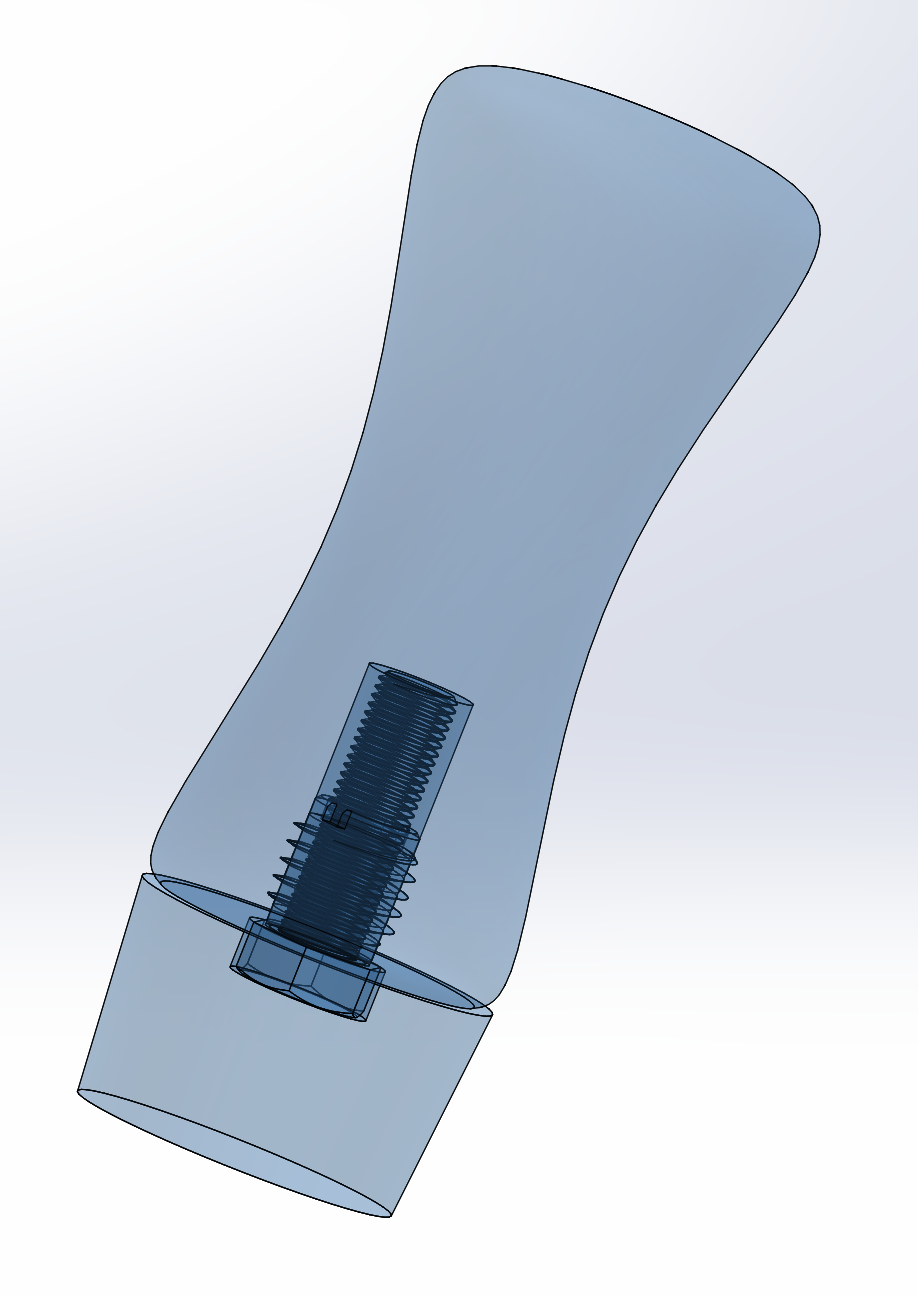

CAD (Solidworks)
CAD (Solidworks)
Pattern
Pattern

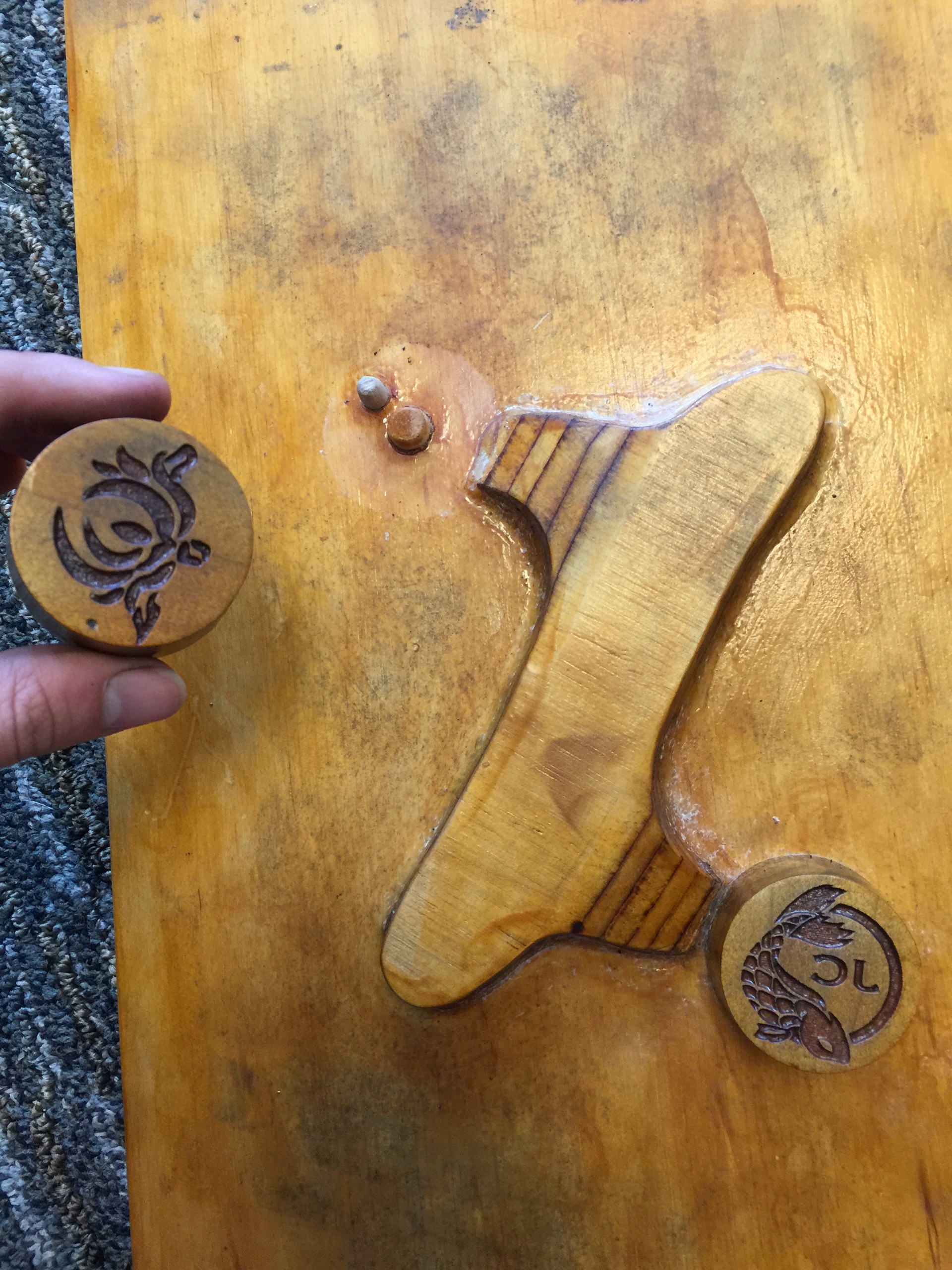

Sand mold vs. Pattern board
Sand mold vs. Pattern board
Fresh casting
Fresh casting
Casting iterations
Casting iterations
Stamp design
Stamp design

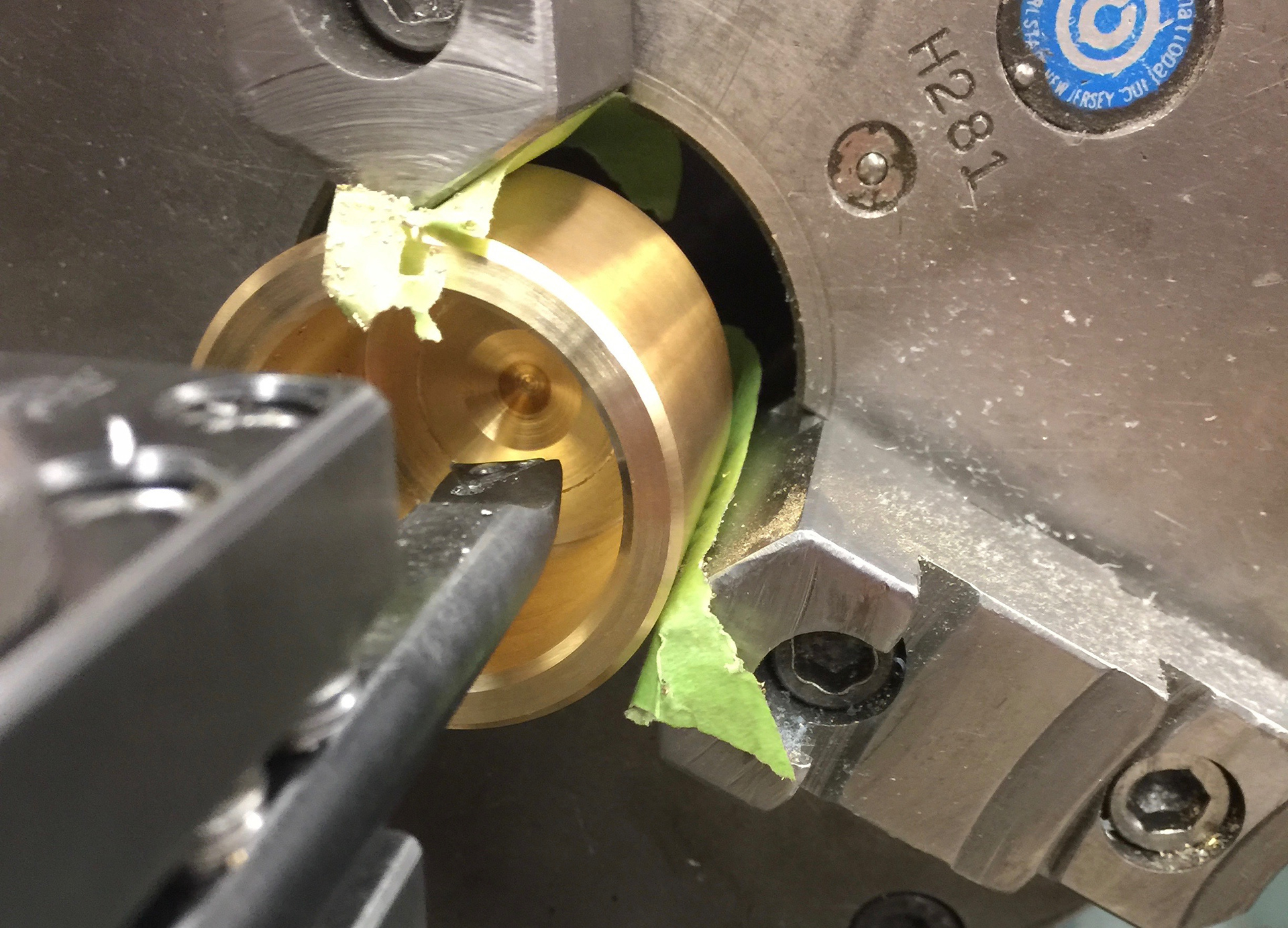

Turning cup
Turning cup

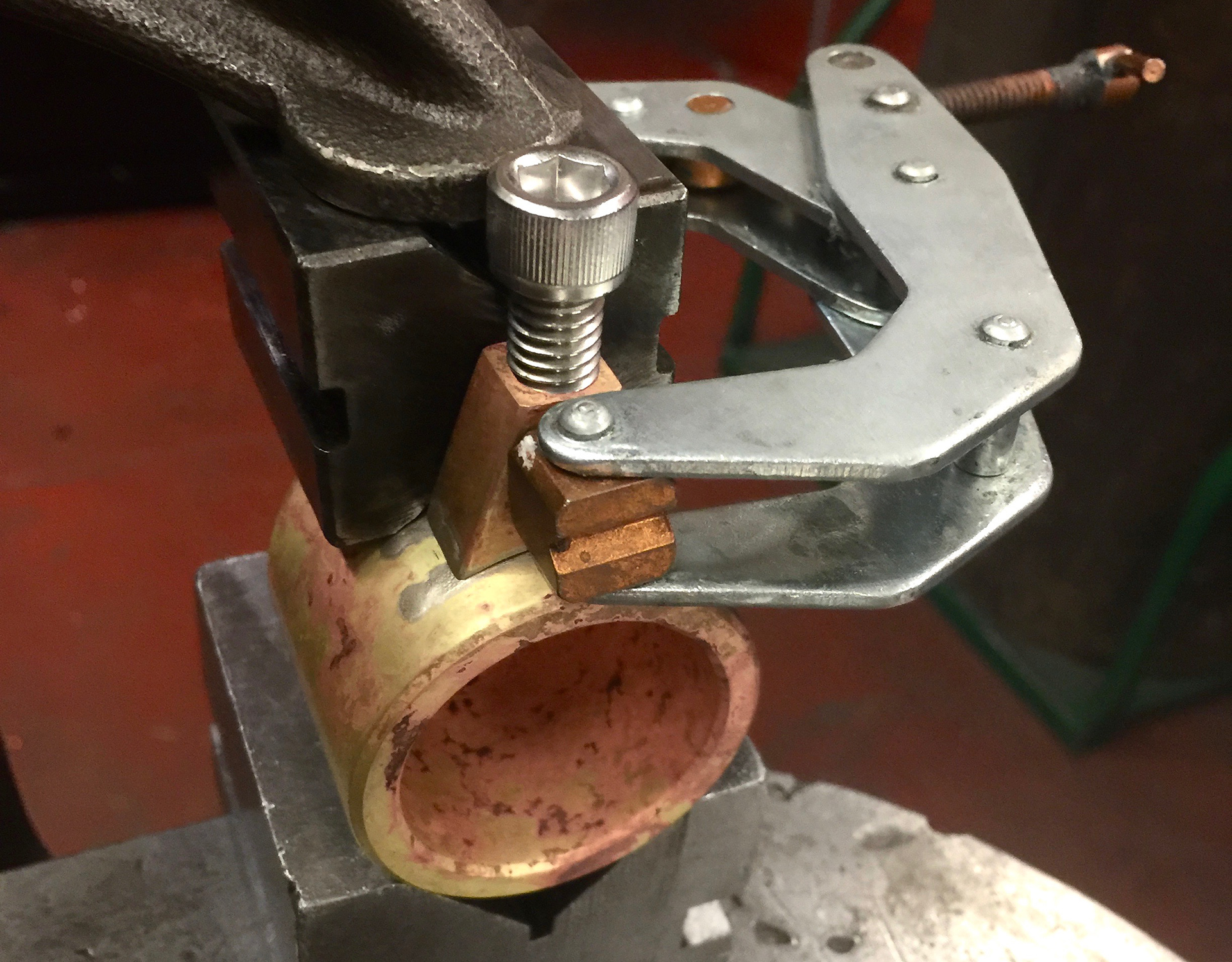

Brazing lug to cup
Brazing lug to cup
Turning handles
Turning handles
Close Up: Pouring cup
Close Up: Pouring cup
Close Up: Wax seal details
Close Up: Wax seal details

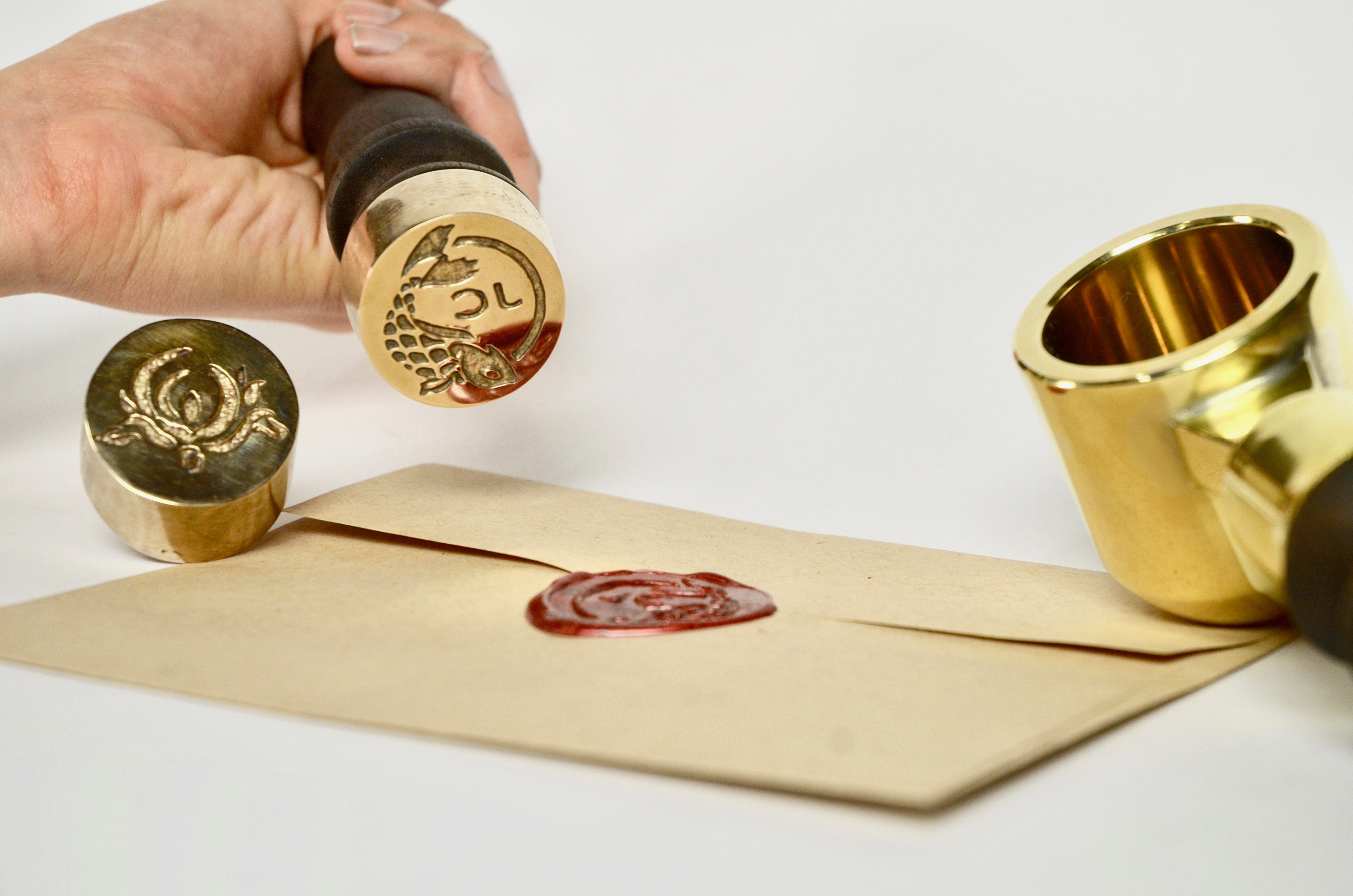

Instructions: (1) Pour melted wax (2) Press stamp on wax
Instructions: (1) Pour melted wax (2) Press stamp on wax
Close Up: Interchangeable stamp heads
Close Up: Interchangeable stamp heads

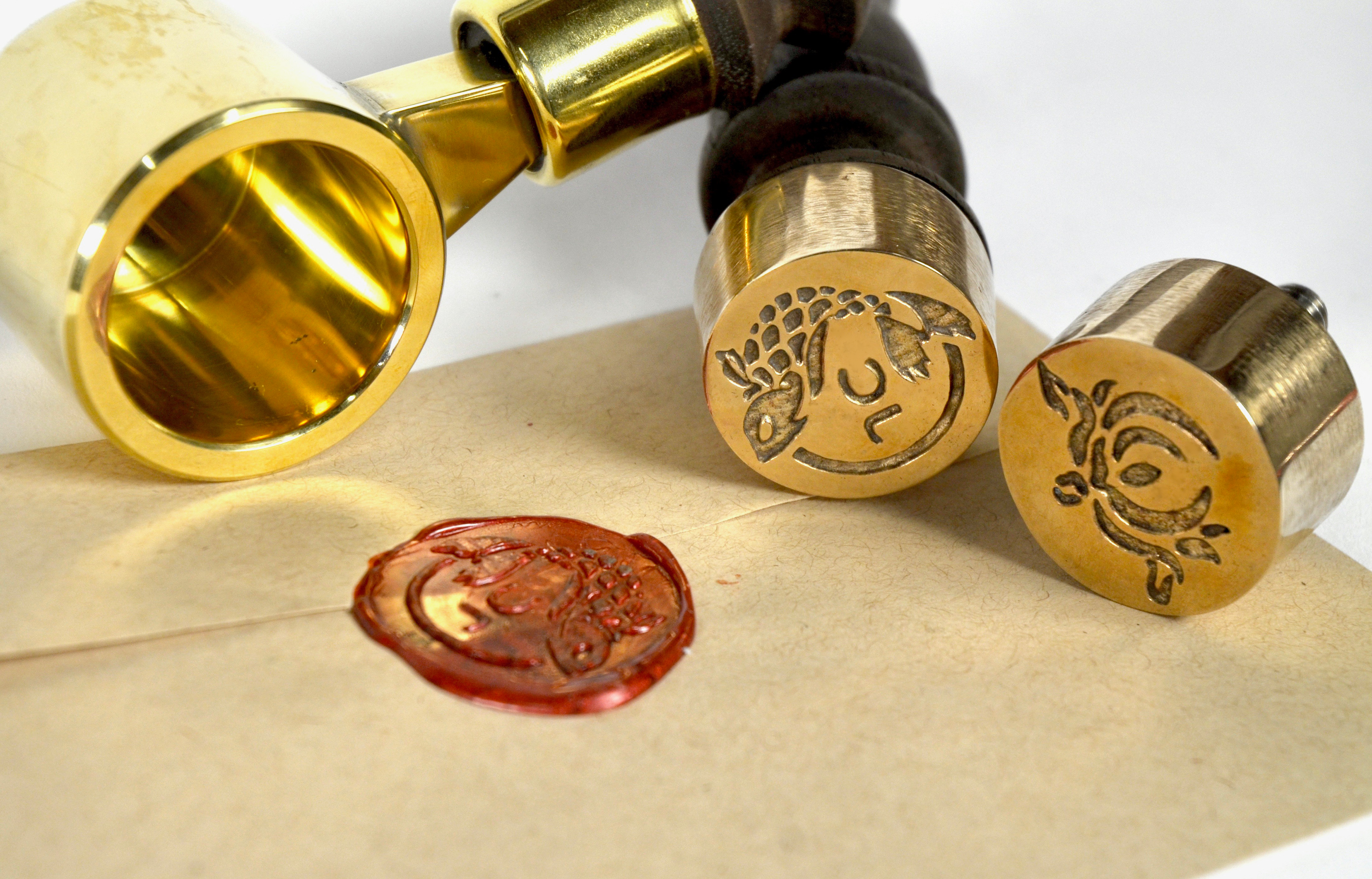

Final product
Final product
